LX-33A66

Rockchip RK3288處理器, 3*COM, 7*USB, 1*LAN, 1*MIPI-CSI

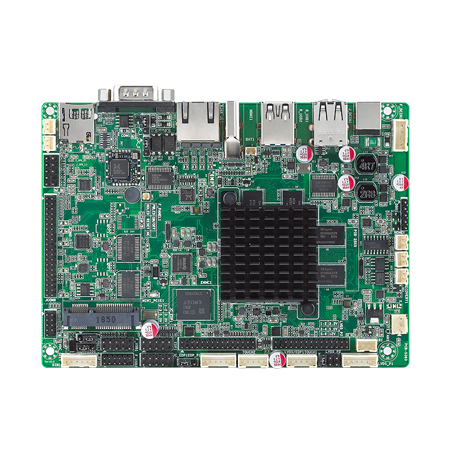

采用Rockchip RK3399處理器

板載1/2/4G內存, 8/16/32G eMMC存儲

6*COM, 7*USB, 1*千兆網口, 2*觸摸屏接口

1*HDMI, 1*eDP, 1*LVDS/eDP, 支持雙顯

板載Wifi+藍牙模塊, 1*Mini-PCIe支持Wifi/3G/4G

3.5寸, DC 12V供電

驅動/資料下載

規格

General

CPU：ARM Rockchip® RK3399, Dual-Core Cortex-A72 + Quad-Core Cortex-A53,up to 1.8GHz and1.4GHz

Memory：DDR3-1333, 1/2/4GB, on board

Storage：1*eMMC 8/16/32G, 1*TF Card

Expansion Interface：1*Mini-PCIe (Wifi/3G/4G supported)

OS：Android, Linux

I/O Interface

Etherne：1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45，1*Realtek® Wifi+BT module on board，(Wifi IEEE 802.11a/b/g/n/ac, 2.4GHz/5GHz, BT 4.2 support BLE)

Serial：5*RS232, 1*RS232/RS485

USB：1*USB 3.0, 6*USB 2.0

Audio：Everest® Codec, with MIC/Line-out and Amplifier

GPIO：8*Programmable GPIO

Feature Interface：2*Touch Panel Header (USB only),1*Infrared Header

Display

Display Interface：1*HDMI: max resolution up to 4096*2160@60Hz：1*eDP: max resolution up to 4096*2160@30Hz：1*LVDS/eDP: LVDS, Dual Channel 24 bit, resolution up to 1920*1080@60Hz：eDP, resolution up to 4096*2160@30Hz

Multiple Display：Dual

Mechanical & Environment

Dimension：146*105mm

Power Input：DC 12V

Temperature：Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity：Operation: 10%~90%, Storage: 5%~95%, non-condensing
