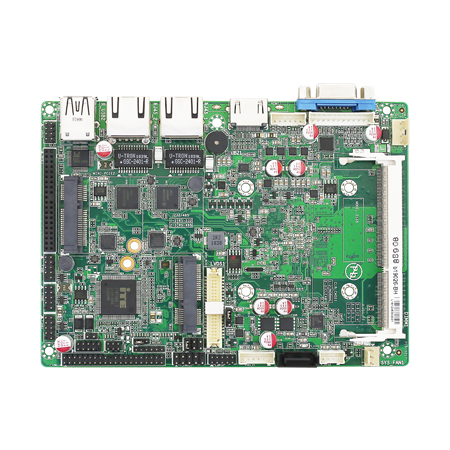

LX-19026-BH

Intel Celeron J1900處理器, CPU背置, 6*COM, 7*USB, 2*LAN, 2*Mini-PCIe, 3.5寸

采用Intel Bay Trail Celeron J1900處理器

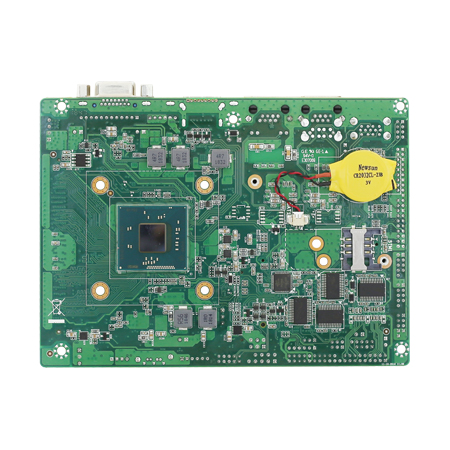

背置CPU, 更適用于無風扇整體散熱設計

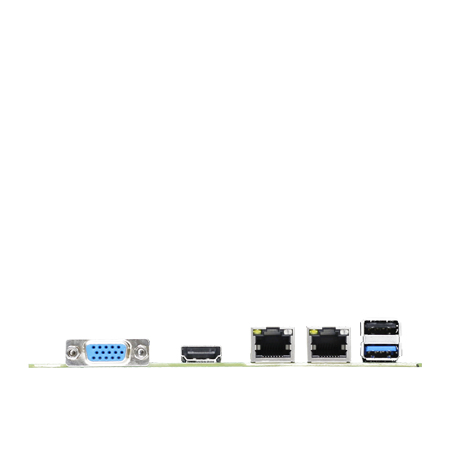

6*COM, 7*USB, 2*Intel千兆網口

1*VGA, 1*HDMI, 1*LVDS/eDP, 支持雙屏異顯

2*Mini-PCIe支持mSATA和Wifi/3G/4G

3.5寸, DC 12V供電

驅動/資料下載

規格

General

CPU：Intel® Celeron® J1900 CPU, Quad-core, up to 2.42 GHz, TDP 10W

Memory：DDR3L-1333, 1*SO-DIMM, up to 8 GB

Storage：1*SATA 2.0, 1*mSATA

Expansion Interface：2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported),up to 3*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G, 1*Wifi supported) with SV-M7-C BIOSAMI UEFI BIOS

System：Windows 7/8.1/10, Linux

I/O Interface

Ethernet：2*Intel® 1Gbps PCIe Ethernet Controller, RJ45 up to 4*Intel® 1Gbps PCIe Ethernet Controller with SV-M7-L

Serial：4*RS232, 1*RS232/TTL, 1*RS232/RS485

USB：1*USB 3.0, 6*USB 2.0

Audio：Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out

PS/2：1*PS/2 Header (Keyboard & Mouse)

GPIO：8*Programmable GPIO

Feature Interface：1*SVIO Connector

Display

Display Interface：1*VGA: max resolution up to 1920*1080@60Hz，1*HDMI: max resolution up to 1920*1200@60Hz ，1*LVDS/eDP: LVDS, Dual Channel 24 bit, max resolution up to 1920*1200@60HzeDP, max resolution up to 2560*1600@60Hz

Multiple Display：Dual

Mechanical & Environment

Dimension：146*105mm

Power Input：DC 12V

Temperature：Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity：Operation: 10%~90%, Storage: 5%~95%, non-condensing
